LUXMAN STEREO POWER AMPLIFIER
FEATURES: DC Complementary Power Amplifier with TO-3 Transistors.
Equalizer Preamplifier with NPN and PNP Transistors.
Luxman Voltage Divider (mechanic tap location for linear Frequency Response).

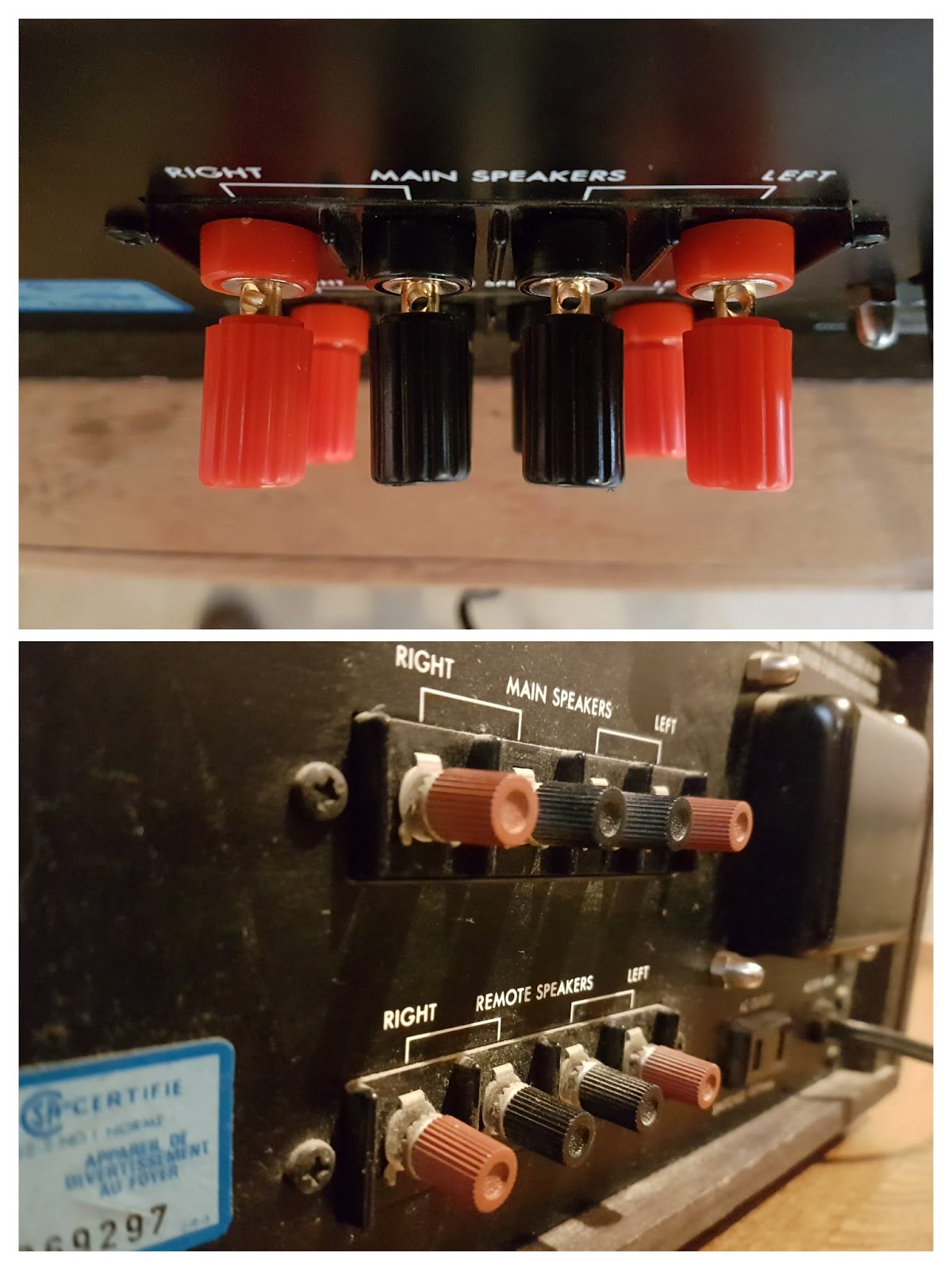

Tape-Monitor Selector, Speaker Selection, Tone Control Switch, DIN Connector.
SEMICONDUCTORS: 27 Transistors; 8 Diodes, 2 Zener-Diodes; 1 LED.
POWER SUPPLY: 100/120/220/240 VG, 50/60 Hz.
Specifications: all-akustik Luxman Folder.
Photos: (1-5) ebay.com 300697764860.

1. Luxman L30 Price Chart
2. Luxman L30 Price Guide
3. Luxman L30 Price List

Luxman amplifier prices are on sahibinden.com with used and new options. You can list the lamp amplifiers or amplifiers with transistor outlet you are looking for according to structure as receiver amplifier, power amplifier, integrated amplifier and pre amplifier. Luxman L-30 Specifications. Power output: 40 watts per channel into 8Ω (stereo) Frequency response: 15Hz to 50kHz. Total harmonic distortion: 0.05%. Damping factor: 90. Input sensitivity: 2.5mV (MM), 150mV (line) Signal to noise ratio: 64dB (MM), 83dB (line) Semiconductors: 27 x transistors, 8 x diodes, 2 x zener diodes, 1 x led. The L-30 is the less powerful and earlier sibling of the L-31; combo-wise, fits the T-33 tuner. Dual-rail differential driver power supply, low-noise preamp, 2-stage DC with PNP/NPN phono stage, an impressive damping factor and cutie styling alternating aluminium and plastic knobs on a very elegant aluminium front. Asking price: Province: Posted On: Photo: 1: FOR SALE: Clean Vintage Luxman Set.L-30 Int. Amp and T-33 Tuner.Serviced! Solid State Integrated Amplifiers: $490.00: BC Nov 25, 2020: 2: FOR SALE: Luxman L550 AX II: Solid State Integrated Amplifiers: $5750.00: QC Oct 26, 2020.

If you own this product and would like to post your pictures on this site, please contact the webmaster

Luxman L30 Price Chart

Luxman L30 Price Guide

Specifications: 1. General System: Transistor Integrated Amplifier Colour: 1=Silver, 2=Black: 1/Woodcase Power consumption: 140 W @ 120/240 V Pre Amplifier Inputs: Phono MM; Tuner; AUX I+II; Monitor Quadro: no Inp. Sensitivity High Level: 150 mV Inp. Impedance High Level: >60 kΩ Signal/Noise High Level: >83 db Inp. Sensitivity Phono MM: 2.6 mV Inp. Impedance Phono MM: 50 kΩ Signal/Noise Phono MM: >64 db Equalizer Tone Controls: (LUX NF) Bass; Treble Frequencies: LUX NF Filters: SUBSONIC (-6 dB/oct./ 70 Hz) HIGH (-6 dB/oct./ 7 kHz) Loudness: yes Power Amplifier Speaker Outputs: 2 x 2 Speakers; Phones Continuous Power 4Ω: 50 + 50 (DIN) Watts Continuous power 8Ω: 32 + 32 (IHF) 40 + 40 (DIN) Watts Frequency Response: 15~50,000 (-1 dB) HZ Damping factor: (8Ω) >90 Harmonic Distortion: <0.05 % at rated output 2. Physical Dimensions in Inches: 17.3 x 6.3 x 8.8 (w) x (h) x (d) Dimensions in mm: 440 x 160 x 225 (w) x (h) x (d) Weight in lbs: 15.4 lbs Weight in Kg: 7.0 Kg
